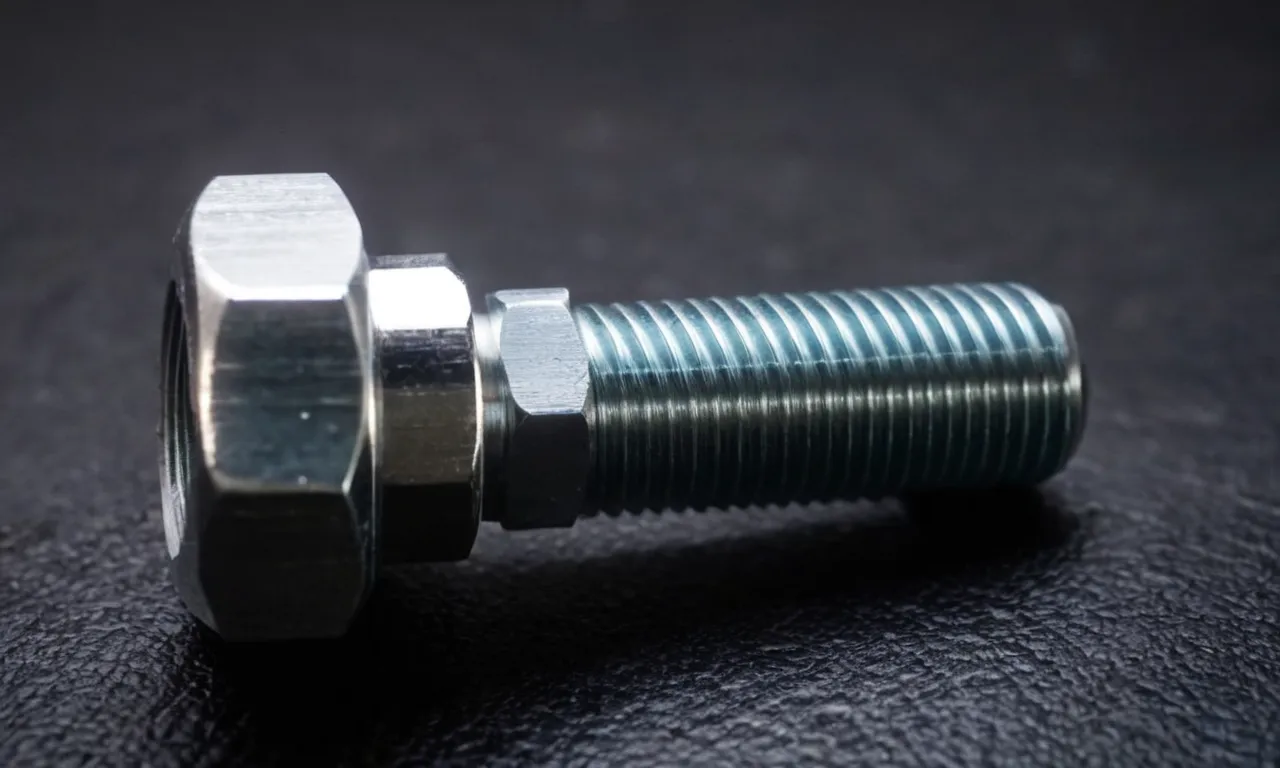

Understanding 3/8-16 Thread: A Comprehensive Guide To Thread Specifications

Have you ever found yourself staring at a bolt or screw, wondering about the mysterious numbers and fractions etched onto its surface? If you’ve come across the term ‘3/8-16 thread,’ you’re not alone in your curiosity.

This seemingly cryptic code holds the key to understanding a crucial aspect of fastener technology that impacts everything from DIY projects to industrial manufacturing.

If you’re short on time, here’s a quick answer to your question: A 3/8-16 thread refers to a specific thread specification where 3/8 indicates the nominal diameter of the threaded rod in inches, and 16 represents the number of threads per inch (TPI).

In this comprehensive guide, we’ll delve deep into the world of 3/8-16 threads, exploring their characteristics, applications, and significance in various industries. We’ll break down the nomenclature, discuss the technical specifications, and provide insights into how these threads are manufactured and used.

Whether you’re a hobbyist, a professional engineer, or simply someone looking to expand their knowledge, this article will equip you with a thorough understanding of 3/8-16 threads.

Throughout this article, we’ll cover the following key areas: the basics of thread terminology, the specific characteristics of 3/8-16 threads, their common applications and industries, and tips for working with these threads in your projects.

By the end of this guide, you’ll have a comprehensive understanding of 3/8-16 threads and be able to confidently identify, select, and work with them in various scenarios.

Understanding Thread Basics and Terminology

What is a thread?

Ever wondered what holds your favorite gadgets together? 🤔 It’s probably threads! A thread is a helical ridge that winds around a cylindrical or conical surface, creating a fastening mechanism. It’s like a tiny spiral staircase that allows screws, bolts, and nuts to grip and hold things together.

Threads are the unsung heroes of the mechanical world, keeping everything from your smartphone to massive industrial machinery in one piece. 👍

Threads come in various shapes and sizes, each designed for specific applications and load-bearing capacities. The most common types include V-threads, square threads, and buttress threads. V-threads, which form a “V” shape when viewed in cross-section, are the most widely used due to their excellent balance of strength and ease of manufacturing.

Thread standards and classifications

Just like languages have grammar rules, threads have standards! These standards ensure that a bolt made in New York will fit perfectly with a nut made in Tokyo. 🌎 The two main thread classification systems are:

• Unified Thread Standard (UTS) – used primarily in the United States and Canada
• ISO metric screw thread – used in most other countries

Within these systems, threads are further classified based on their fit (how tightly the external and internal threads mesh), pitch (distance between thread peaks), and diameter. For example, a “coarse” thread has a larger pitch and is easier to assemble, while a “fine” thread has a smaller pitch and can withstand higher loads.

Unified Thread Standard (UTS) explained

The Unified Thread Standard (UTS) is like the rock star of thread systems in North America! 🎸 It’s a standardized system for screw threads used in the United States and Canada, developed to unify different thread standards that existed previously.

The UTS is defined by ASME/ANSI B1.1-2003, which you can find more about on the ASME website.

In the UTS system, thread designations typically include the major diameter, threads per inch, and thread series. For instance, in the thread specification “3/8-16 UNC”, 3/8 represents the major diameter in inches, 16 is the number of threads per inch, and UNC stands for Unified National Coarse.

Metric vs. Imperial thread systems

Ah, the age-old battle: metric vs. imperial! 🥊 It’s like choosing between tea and coffee – both have their merits, but people tend to stick with what they’re used to. Let’s break down the key differences:

Did you know? According to a 2019 survey by the National Institute of Standards and Technology, approximately 95% of the world’s population uses the metric system in their daily lives. However, the imperial system still holds strong in certain industries and regions, particularly in the United States.

Understanding these thread basics and terminology is crucial for anyone working with mechanical components. Whether you’re a DIY enthusiast or a professional engineer, knowing your threads can save you time, money, and a whole lot of headaches!

😊 So next time you’re tightening a screw, take a moment to appreciate the intricate world of threads that’s holding everything together!

Decoding the 3/8-16 Thread Specification

Ever wondered what those mysterious numbers and dashes mean when you’re shopping for bolts or screws? 🤔 Well, you’re not alone! Let’s dive into the fascinating world of thread specifications, specifically the 3/8-16 thread.

It’s like cracking a secret code, but don’t worry, we’ll make it as easy as pie! 😊

Breaking down the 3/8-16 designation

The 3/8-16 thread specification is a shorthand way of describing the size and threading of a fastener. It’s like a DNA code for screws and bolts! This designation is part of the Unified Thread Standard (UTS), which is widely used in the United States and many other countries.

The UTS was developed to standardize thread specifications, making it easier for manufacturers and consumers alike. Isn’t it great when things just fit together perfectly? 👍

Nominal diameter: What does 3/8 mean?

The “3/8” in our thread specification refers to the nominal major diameter of the fastener, measured in inches. It’s important to note that this is an approximate measurement, not an exact one. The actual diameter might be slightly different due to manufacturing tolerances.

For example, according to the Engineering ToolBox, the actual major diameter of a 3/8-16 UNC screw can range from 0.3679 to 0.3750 inches. That’s a difference of about 0.007 inches – talk about precision! 🔬

Thread pitch and TPI: The significance of 16

The “16” in our 3/8-16 specification refers to the number of threads per inch (TPI). This measurement tells us how closely spaced the threads are along the length of the fastener. In this case, there are 16 threads in one inch of the fastener’s length.

The TPI is inversely related to the thread pitch – the higher the TPI, the finer the thread pitch. For our 3/8-16 thread, the pitch would be 1/16 inch or approximately 1.5875 mm. Isn’t it amazing how much information can be packed into just a few numbers? 🤓

Class of fit and thread series

While not explicitly stated in the 3/8-16 designation, there are two more important aspects to consider: the class of fit and the thread series. The class of fit determines how tightly the external (bolt) and internal (nut) threads mesh together.

It’s like choosing between a snug hug and a loose handshake! 🤗 The most common classes for inch-based threads are 1B, 2B, and 3B for internal threads, and 1A, 2A, and 3A for external threads.

As for the thread series, 3/8-16 is typically part of the Unified Coarse (UNC) series. There’s also a Unified Fine (UNF) series, which would have more threads per inch for the same nominal diameter. For example, a 3/8 UNF thread would have 24 threads per inch instead of 16.

It’s like choosing between coarse and fine sandpaper – each has its own purpose!

Understanding these specifications can save you a lot of headaches (and trips to the hardware store) when working on projects. So next time you see a 3/8-16 thread specification, you’ll know exactly what it means. Isn’t knowledge power? 💪😎

Technical Characteristics of 3/8-16 Threads

When it comes to understanding the nitty-gritty details of 3/8-16 threads, we’re diving into a world of precision and engineering marvel. 🔧 Let’s break down the technical characteristics that make this thread specification unique and widely used in various applications.

Major, minor, and pitch diameters

The 3/8-16 thread specification is all about the numbers, folks! 📏 The major diameter, which is the largest diameter of the thread, measures 0.375 inches (9.525 mm). This is where the “3/8” in the specification comes from.

The minor diameter, the smallest diameter at the root of the thread, is approximately 0.2983 inches (7.577 mm). But wait, there’s more! The pitch diameter, which falls between the major and minor diameters, is about 0.3344 inches (8.494 mm).

These measurements are crucial for ensuring proper fit and function. According to the Engineering ToolBox, these dimensions are standardized to maintain consistency across different manufacturers and applications. Isn’t it amazing how a few thousandths of an inch can make such a big difference? 🤯

Thread angle and form

Now, let’s talk about the shape of these threads. The 3/8-16 thread follows the Unified Thread Standard (UTS) form, which specifies a 60-degree thread angle. This means that if you were to look at a cross-section of the thread, you’d see a triangle with its point lopped off, forming a flat crest.

This design provides a balance between strength and ease of manufacturing.

The thread form also includes slight radii at the root and crest to reduce stress concentrations. It’s like giving the thread a tiny massage to keep it from getting too stressed out! 😌

Thread depth and crest

Diving deeper (pun intended 😉), the thread depth of a 3/8-16 thread is approximately 0.0384 inches (0.975 mm). This depth ensures proper engagement between mating parts. The crest, which is the top surface of the thread, has a width of about 0.0045 inches (0.114 mm).

These dimensions might seem small, but they play a huge role in the thread’s performance. It’s like the old saying goes, “It’s the little things that count!” And in this case, those little things are keeping your bolts and nuts securely fastened.

Tolerance and allowance

Last but not least, let’s talk about tolerance and allowance. These factors are crucial for ensuring that parts fit together properly, even when manufactured by different suppliers. For a 3/8-16 thread, the typical class 2A (external) and 2B (internal) fit tolerances are used.

According to the American Machine Screw Standard, these tolerances allow for a small amount of play between mating parts, typically around 0.001 to 0.002 inches. This might not sound like much, but it’s enough to accommodate slight variations in manufacturing while still ensuring a snug fit.

It’s like giving your threads a little wiggle room to dance! 💃

Understanding these technical characteristics is essential for anyone working with 3/8-16 threads. Whether you’re a DIY enthusiast or a professional engineer, knowing the ins and outs of these specifications can help you choose the right fasteners for your projects and ensure they perform as expected.

So the next time you’re working with these threads, take a moment to appreciate the precision engineering that goes into every single one! 👏

Manufacturing Processes for 3/8-16 Threads

When it comes to creating those precise 3/8-16 threads we all know and love 😍, manufacturers have several tricks up their sleeves. Let’s dive into the fascinating world of thread manufacturing, shall we? 🏭

Cutting threads: Taps and dies

The most common method for creating 3/8-16 threads is through cutting, using taps for internal threads and dies for external threads. This process involves removing material to form the thread profile, resulting in highly accurate threads. Taps and dies come in various types, including hand taps, machine taps, and thread-forming taps.

According to a study by the Machining Doctor, cutting threads accounts for approximately 60% of all thread manufacturing processes in the industry. Isn’t that impressive? 👏

Rolling threads: Cold forming process

For high-volume production, thread rolling is the way to go! 🎉 This cold forming process doesn’t cut material but instead displaces it, creating stronger threads with improved fatigue resistance. Rolling threads is up to 15 times faster than cutting and can produce up to 5,000 parts per hour! The process involves passing the workpiece between two dies with the thread form embossed on them.

Thread rolling is particularly popular in the automotive and aerospace industries, where strength and consistency are paramount.

Grinding and milling threads

When precision is the name of the game, grinding and milling come into play. These processes are often used for specialized applications or when dealing with harder materials. Grinding uses abrasive wheels to form the thread profile, while milling employs rotating cutting tools.

Both methods can achieve tolerances as tight as ±0.0005 inches, making them ideal for high-precision 3/8-16 threads in critical applications. Ever wondered how those super-accurate threads in your fancy watch or medical device are made? Now you know! 😊

Quality control and inspection methods

Creating perfect 3/8-16 threads is one thing, but ensuring they meet specifications is another ball game altogether. Manufacturers employ various quality control techniques to keep those threads in tip-top shape:

• Go/No-Go gauges: These simple yet effective tools quickly check if threads are within acceptable limits.
• Thread micrometers: For more precise measurements of pitch diameter and other thread elements.
• Optical comparators: These bad boys project a magnified image of the thread profile for visual inspection.
• Coordinate Measuring Machines (CMMs): High-tech devices that provide detailed 3D measurements of thread geometry.

Did you know that the American Society of Mechanical Engineers (ASME) sets the standards for thread inspection? Their B1.2 standard is the go-to guide for thread gauging and inspection. Talk about threading the needle of quality control! 🧵👀

Common Applications and Industries Using 3/8-16 Threads

The versatile 3/8-16 thread specification finds its way into numerous applications across various industries. Let’s dive into some of the most common uses for this ubiquitous fastener size. 😊

Automotive and transportation

In the automotive world, 3/8-16 threads are as common as traffic jams during rush hour! 😂 These threads are extensively used in vehicle manufacturing and maintenance. You’ll find them in engine components, suspension systems, and body panel fasteners. For instance, many engine block bolts, cylinder head bolts, and exhaust manifold studs utilize this thread specification.

According to a report by Grand View Research, the global automotive fasteners market size was valued at USD 21.6 billion in 2020 and is expected to grow at a compound annual growth rate (CAGR) of 3.8% from 2021 to 2028 (source).

This growth indicates the continued importance of fasteners like 3/8-16 threads in the automotive industry.

Construction and building materials

Ever wondered what keeps those sturdy structures standing tall? 🏗️ Well, 3/8-16 threads play a crucial role! In the construction industry, these threads are commonly used in various applications. They’re found in structural steel connections, concrete anchoring systems, and heavy machinery attachments. For example, many anchor bolts used to secure steel columns to concrete foundations employ 3/8-16 threads.

The construction fasteners market is booming, with a projected CAGR of 4.9% from 2021 to 2028, according to Allied Market Research (source). This growth underscores the importance of reliable fasteners like 3/8-16 threads in the construction sector.

Machinery and equipment manufacturing

When it comes to machinery and equipment manufacturing, 3/8-16 threads are the unsung heroes! 🦸‍♂️ These threads are widely used in the production of industrial machinery, agricultural equipment, and manufacturing tools. They’re often found in assembly components, mounting brackets, and adjustment mechanisms.

For instance, many conveyor systems, packaging machines, and CNC equipment utilize 3/8-16 threaded fasteners. The global industrial fasteners market is expected to reach USD 131.3 billion by 2026, growing at a CAGR of 4.2% from 2021 to 2026, according to MarketsandMarkets (source).

This growth highlights the ongoing demand for reliable fasteners like 3/8-16 threads in the machinery and equipment manufacturing sector.

Consumer products and DIY applications

Last but not least, 3/8-16 threads are the go-to choice for many consumer products and DIY enthusiasts. 🛠️ These threads are commonly found in furniture assembly, home appliances, and various DIY projects. From assembling a new bookshelf to mounting a TV bracket, 3/8-16 threads often come to the rescue.

They’re also popular in the world of hobbyist mechanics and custom car builders. The global DIY tools market is projected to reach USD 13.9 billion by 2027, growing at a CAGR of 3.9% from 2020 to 2027, according to Allied Market Research (source).

This trend suggests that the demand for standardized fasteners like 3/8-16 threads in consumer and DIY applications will continue to grow.

So, the next time you’re tightening a bolt or assembling something, take a moment to appreciate the humble 3/8-16 thread. It might just be the unsung hero holding your world together! 👍

Selecting and Working with 3/8-16 Threaded Fasteners

When it comes to working with 3/8-16 threaded fasteners, there are several crucial factors to consider. Let’s dive into the nitty-gritty of choosing the right materials, determining proper lengths, and mastering installation techniques. Trust me, you’ll be a fastener pro in no time! 😊

Choosing the right fastener material

The material of your fastener can make or break your project (literally! 😂). Common materials for 3/8-16 threaded fasteners include stainless steel, carbon steel, and brass. Each has its pros and cons:

• Stainless steel: Corrosion-resistant and durable, perfect for outdoor applications.
• Carbon steel: Strong and affordable, ideal for general-purpose use.
• Brass: Attractive and non-sparking, great for decorative or potentially explosive environments.

According to a recent survey by Fastenal, stainless steel fasteners account for approximately 30% of all industrial fastener sales. That’s a lot of shiny screws! 👍

Determining proper fastener length

Ever heard the saying, “Measure twice, cut once”? Well, it applies to fasteners too! To determine the correct length for your 3/8-16 fastener, consider the thickness of the materials being joined and add about 1.5 times the diameter of the fastener for the thread engagement. For example, if you’re joining two 1/2″ thick pieces, you’d need:

1/2″ + 1/2″ + (1.5 x 3/8″) = 1 9/16″ fastener length

Remember, it’s better to err on the side of slightly too long rather than too short. You can always trim excess length, but you can’t magically extend a too-short bolt! 🎉

Tools and techniques for installation

Ready to get your hands dirty? Here are some tools you’ll need for installing 3/8-16 fasteners:

• 9/16″ wrench or socket
• Torque wrench
• Thread lubricant
• Safety glasses (because nobody likes metal shavings in their eyes! 😍)

When installing, always start the fastener by hand to avoid cross-threading. Once you’ve got a good start, use your wrench to tighten it up. And here’s a pro tip: apply a small amount of thread lubricant to reduce friction and prevent galling.

Your future self will thank you when it’s time for removal!

Torque specifications and tightening procedures

Now, here’s where things get really exciting (if you’re a fastener nerd like me! 🤓). The recommended torque for a grade 5 3/8-16 bolt is typically around 30-35 ft-lbs. However, this can vary based on the specific application and material.

Always consult manufacturer guidelines or engineering specifications for your particular project.

When tightening, use the following procedure:

1. Hand-tighten the fastener
2. Use a wrench to snug it up
3. Apply final torque with a calibrated torque wrench
4. Double-check the torque after a short period of use

Remember, over-tightening can be just as problematic as under-tightening. It’s like Goldilocks – you want it just right!

So there you have it, folks! Everything you need to know about selecting and working with 3/8-16 threaded fasteners. With this knowledge, you’ll be the go-to person for all things fastener-related at your next DIY gathering. Who knew screws could be so fascinating? 🎉👏

Troubleshooting and Maintenance of 3/8-16 Threads

Common thread problems and solutions

When working with 3/8-16 threads, you might encounter various issues that can affect their performance. Some common problems include cross-threading, galling, and stripping. Cross-threading occurs when the bolt or nut is inserted at the wrong angle, causing damage to the threads.

To avoid this, always start threading by hand and ensure proper alignment. Galling happens when there’s excessive friction between mating surfaces, leading to seizing or tearing. Using a suitable lubricant can help prevent this issue.

Stripping is when the threads are worn down or damaged, often due to overtightening or using incorrect tools. 😬

To solve these problems, it’s essential to use the right tools and techniques. For instance, thread chasers or taps can help clean and restore slightly damaged threads. In more severe cases, thread repair kits, such as HeliCoil or TIME-SERT, can be used to insert new threads.

According to a study by the American Society of Mechanical Engineers (ASME), proper thread maintenance can extend the life of fasteners by up to 50%! 👍 For more information on thread repair techniques, check out ThreadRepair.com.

Repairing damaged threads

When it comes to repairing damaged 3/8-16 threads, you’ve got options! 🛠️ The most common methods include using thread inserts, re-tapping, or replacing the threaded component entirely. Thread inserts, like HeliCoil or KeySert, are popular choices for restoring damaged internal threads.

They involve drilling out the damaged area, tapping a new oversized thread, and installing a threaded insert that matches the original specifications.

Re-tapping is another option for minor thread damage. This process involves using a tap to clean and reshape the existing threads. However, it’s crucial to use the correct tap size and follow proper tapping techniques to avoid further damage.

In some cases, especially with external threads, it might be necessary to replace the entire component. While this can be more expensive, it ensures a perfect fit and optimal performance. Don’t forget to consult the manufacturer’s guidelines or a professional if you’re unsure about the best repair method for your specific situation.

Preventing thread corrosion and wear

An ounce of prevention is worth a pound of cure, right? 😉 When it comes to 3/8-16 threads, taking proactive measures can significantly extend their lifespan. Corrosion and wear are two major enemies of threaded components, but there are several ways to combat them. First, consider using corrosion-resistant materials like stainless steel or applying protective coatings such as zinc or cadmium plating.

These treatments create a barrier against moisture and other corrosive elements.

Regular lubrication is another key factor in preventing wear and reducing friction. Choose a lubricant that’s appropriate for your specific application and environmental conditions. For instance, molybdenum disulfide-based lubricants work well in high-temperature environments, while silicone-based lubricants are excellent for low-temperature applications.

Don’t forget to clean threads thoroughly before applying any lubricant!

Proper torque application is also crucial in preventing thread wear. Over-tightening can lead to thread deformation, while under-tightening may cause loosening and excessive movement. Always use a calibrated torque wrench and follow the manufacturer’s recommended torque specifications.

For more information on thread protection techniques, visit the National Association of Corrosion Engineers (NACE) website.

Thread inspection and measurement tools

Accurate inspection and measurement are essential for maintaining the integrity of 3/8-16 threads. There are several tools available to help you assess thread condition and ensure proper fit. Thread gauges, such as go/no-go gauges, are handy for quick checks of thread pitch and diameter.

These gauges come in sets and provide a simple pass/fail test for thread specifications.

For more precise measurements, consider using a thread micrometer or a thread pitch gauge. These tools allow you to measure thread pitch, major diameter, and minor diameter with high accuracy. Digital calipers can also be useful for measuring overall thread dimensions. 📏

Don’t forget about visual inspection tools! A magnifying glass or a USB microscope can help you spot signs of wear, damage, or corrosion that might not be visible to the naked eye. Some professionals even use borescopes for inspecting hard-to-reach threads in assembled components.

According to a survey by Quality Magazine, 78% of manufacturing professionals consider regular thread inspection crucial for maintaining product quality and preventing failures. So, invest in good inspection tools – your threads will thank you! 😊

Conclusion

As we’ve explored throughout this comprehensive guide, the 3/8-16 thread specification is far more than just a set of numbers and fractions. It represents a precise, standardized system that plays a crucial role in countless applications across various industries.

From the basics of thread terminology to the intricate details of manufacturing processes and practical applications, we’ve uncovered the depth and breadth of knowledge surrounding this common thread type.

Understanding the 3/8-16 thread specification empowers you to make informed decisions when selecting fasteners for your projects, whether you’re working on a DIY home improvement task or designing complex machinery.

The knowledge of thread characteristics, such as nominal diameter, thread pitch, and class of fit, allows for proper selection and application, ensuring the safety and reliability of assembled components.

As technology advances and manufacturing processes evolve, the importance of standardized thread specifications like 3/8-16 remains constant. These threads continue to provide the foundation for countless mechanical connections, enabling the construction of everything from simple furniture to sophisticated aerospace equipment.

By mastering the intricacies of 3/8-16 threads, you’ve gained valuable insight into a fundamental aspect of engineering and design that impacts our daily lives in ways we often take for granted.

Whether you’re a hobbyist, a professional engineer, or simply someone with a curious mind, the knowledge you’ve gained about 3/8-16 threads will serve you well in your future endeavors. Remember, the world of fasteners and thread specifications is vast and ever-evolving, so continue to explore, learn, and apply this knowledge to unlock new possibilities in your projects and professional pursuits.
